Technologie

Generieren Sie reines und sauberes Trinkwasser aus der Feuchtigkeit in der Luft.

EcoloBlue™ ist ein Atmospherischer Wasser-Generator (AWG) neuester Technik, der frisches, reines Trinkwasser erzeugt aus der Feuchtigkeit in der Luft.

Um sicherzustellen, dass das Trinkenwasser frisch und sauber ist, hat EcoloBlue™ einMulti-Filter-System (frei von Chemikalien) mit Umkehr-Osmose und Ultra Violet Filter verwendet. Die elektro-statischen Anti-Bakterien- und Anti-Pilz Filter sind für die Reinigung der Luft in Ihrem Haus/Buro. Das Wasser kann heiß (95 C) oder kalt (5 C) genutzt werden, ein Funktion auf allen Maschinen. Alle AWG-Maschinen können außerdem zum Filtern an das Stadt- oder Hauswasser angeschlossen werden.

EcoloBlue™ bietet eine komplette Palette von Atmospherische Wasser Generatoren. Verfügbar sind Module für die Produktion von 28 bis zu 5000 Liter Wasser pro Tag. Die EcoloBlue™ 28, für Home und Office Einsatz, produziert bis zu 28 Liter Wasser pro Tag. Die EcoloBlue™ für industrielle und Kommerzielen Anwendungen, produziert, je nach Modell 200, 500, 1000, 3000 oder 5000 Liter Wasser pro Tag. Sie können verwendet werden mit Solar und/oder Windenergie-Technologien als alternativen Energiequellen.

Multi-Stage Filtration System - EcoloBlue 28

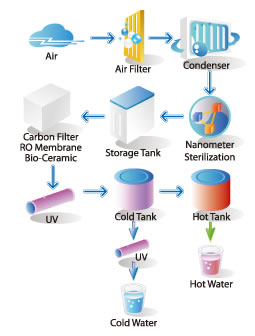

Ecoloblue's high-quality, great tasting water is the result of our unique multi-stage filtration system.

• Electrostatic Air Filter - The electrostatic air filter effectively prevents micro-particles and dust from entering the machine, as well as deterring formation of slime and fungal growth introduced to the machines by the outside environment
• Condensing coils - The condenser is designed with a special food-contact grade coating to prevent any direct metal contact with the water and to improve water production efficiency.
• LF2 Carbon Filter or Nanometer Molecular Sieve (Lower Tank) - Removes ammonia, chlorine residues, organic compounds, soil particles, dirt, etc.
• Lower tank UV Lamp Sterilization (Philips TUV UV-C) - Impedes contamination and growth of bacteria and other microorganisms in the lower storage tank.
• Sediment filter - Removes micro-particles to protect the water pump.
• Pre-Carbon Filter I - Removes organic compounds, free chlorine, heavy metals, etc.
• Pre-Carbon Filter II - Removes organic compounds, free chlorine, heavy metals, etc.
• Reverse Osmosis Membrane (FILMTEC RO) - Removes dangerous bacteria, viruses, mineral salts, heavy metals, organic compounds, etc.
•  Mineral Filter - Adds healthy minerals to the water. OR Post-Carbon Filter - Removes volatile organic compounds and improves water taste and smell. (Machine ships with Mineral Filter. Post-Carbon is an option if you do not want minerals added to the water).
• Top Tank UV Sanitizing (Philips TUV UV-C) - Minimizes bacteria levels in the upper “allotment” tank to the least possible number.
• Water Output UV Sanitizing (Philips TUV UV-C) - Ensures clean and safe water is dispensed from the cool water tank.
• Molecular Sieve Faucet Filters - The nozzle is equipped with three molecular sieves (screens) to trap any fine particles that may be suspended in the water.

Technical Specifications - EcoloBlue 28

Dimensions

Power

Energy Saving Features To conserve electricity, electronic sensors have been placed in the storage tanks to automatically stop the heating, cooling and production capacity of the machine when they have reached their desired levels or settings.

Optimal Operating Conditions & Typical Perf. Parameters:

Atmospheric Water Productio(n Capacity In Liters*):

28 Liters / Day = Aproximately 7 Gallons/Day Production Capacity*

* Water volume production is dependent on the humidity in the air. A minimum 35% humidity is necessary to effectively produce water. Liters to US Gallons (Liquid): A US capacity measure equal to 4 quarts or 3.785 liters. Liters to UK Gallons: A British imperial capacity measure (liquid or dry) equal to 4 quarts or 4.545 liters.
